Tiling a $2\times n$ Board with Dominoes and Trominoes

I assigned Leetcode 790 as a Lab to my students. In this problem, we are tasked with finding the number of ways to tile a $2\times n$ board using dominoes and trominoes. Many online resources do not explain the deduction of the recurrence very well. So I decide to write one here.

Mutual Recursion

It will be convenient to introduce another problem $g(x)$ defined as below to help us attack the problem.

We define two functions to represent the number of tiling configurations:

• $f(n)$: Number of ways to tile a $2\times n$ board.
• $g(n)$: Number of ways to tile a $2\times n$ board with one of the grids in the first column missing.

The phenomenon of two functions recursively call each other is called mutual recursion. In a way, the two functions help implementing each other. We will see that in a minute.

Recurrence Relations

The recurrence relations for $f(n)$ and $g(n)$ are derived based on the ways to cover the first column of the board:

For $f(n)$:

1. Cover the first column with a vertically placed domino. This leaves a $2 \times(n - 1)$ board.
2. Cover the first column with two horizontally placed dominoes. This leaves a $2\times(n - 2)$ board.
3. Cover the first column with a tromino in two possible orientations, each leaving a configuration that fits $g(n - 1)$.

This gives us the relation:

$$ f(n) = f(n - 1) + f(n - 2) + 2g(n - 1). $$

Or one can see the following picture for a better visualization.

For $g(n-1)$:

1. Place a domino to cover the remaining grid in the first column of a $2 \times(n - 1)$ board with one grid missing. This leaves a configuration that fits $g(n - 2)$.
2. Place a tromino to cover the remaining grid in the first column. This leaves a standard $2 \times(n - 3)$ board.

This gives us the relation:

$$ g(n - 1) = g(n - 2) + f(n - 3). $$

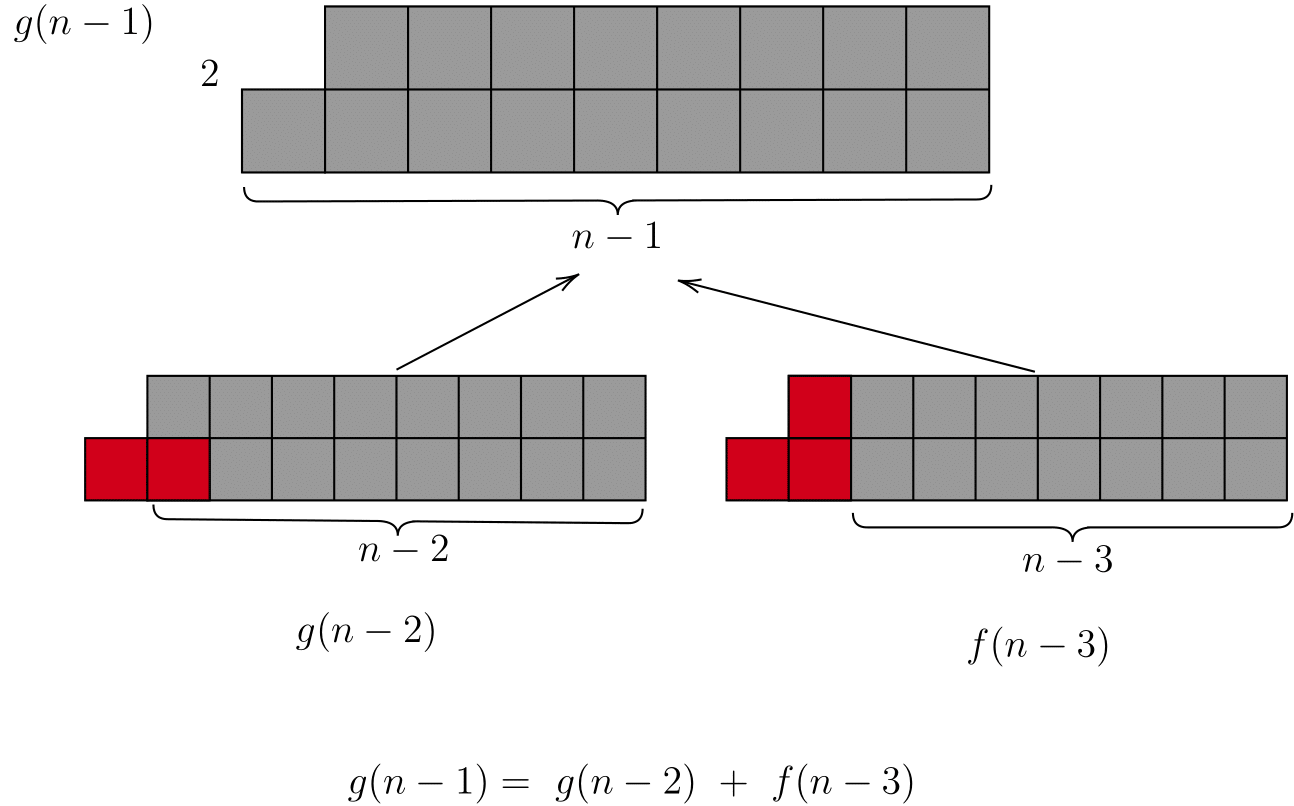

One can consult the following picture for better understanding.

Eliminate the $g()$ function:

From the expression for $f(n)$, we can express $g(n - 1)$ in terms of $f(n).$ $$ g(n - 1) = \frac{f(n) - f(n - 1) - f(n - 2)}{2} $$ and similarly for $g(n - 2)$.

Substituting these into the recurrence for $g(n - 1)$, we get: $$ \frac{f(n) - f(n - 1) - f(n - 2)}{2} =\frac{f(n - 1) - f(n - 2) - f(n - 3)}{2} + f(n - 3). $$

Rearranging and solving for $f(n)$, we finally get: \[f(n) = 2f(n - 1) + f(n - 3). \]

Python Implementation

Dynamic Programming with Memoization:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18

MOD = 10**9 + 7

def f_dp(n):
    if n == 0:
        return 0
    if n == 1 or n== 2:
        return n
    if n == 3:
        return 5
    f = [0] * (n + 1)
    f[0], f[1], f[2], f[3] = 1, 1, 2, 5
    for i in range(4, n + 1):
        f[i] = (2 * f[i - 1] + f[i - 3]) % MOD
    return f[n]

# Example usage:
n = 5
print(f_dp(n))

Conclusion Remarks

Don’t overthink the notion of mutual recursion. It is just you find a helper to help you implement your recursive function. Or it is just a name you give to some special intermediate calculation.

I generate some of the math in markdown by ChatGPT. I would hope it can help me draw the pictures but it did not do so good a job in writing Tikz. I ended up using Mathcha to draw the picture I need. It is a very good online what-you-see-is-what-you-get solution for LaTex/Tikz. I highly recommend it when it comes to draw math pictures.
